Ag102 is Silvertel’s first battery charger module. Designed to maximise battery lifetimes while reducing power consumption using intelligent charging techniques and our high efficiency DC-DC converter, Ag102 is very eco-friendly technology.
Buy Samples
Share:
Description
Ag102 is Silvertel’s first battery charger module. Designed to maximise battery lifetimes while reducing power consumption using intelligent charging techniques and our high efficiency DC-DC converter, Ag102 is very eco-friendly technology. This module is for use in charging 12V sealed lead acid (SLA) batteries of between 1.2Ah and 7Ah capacity. With minimal additional components required, it is easy to implement and means battery maintenance and replacement becomes trivial when considering total life cycle costs.
| Part Number | Input Voltage Supply | Mounting Type | Buy Samples |
|---|---|---|---|
| Ag102 | 9V-36V | Single-in-Line (SIL) Through-Hole | |

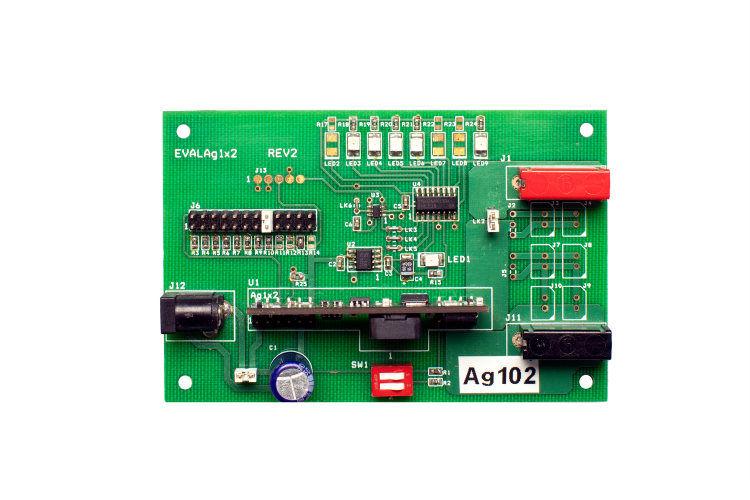

Ag102 Evaluation Board
This evaluation board is designed to work with the Ag102 Sealed Lead Acid (SLA) battery charger module. This evaluation board can be powered by a bench power supply with a range of 9V to 36V. It is capable of charging SLA batteries with a capacity of between 1.2Ah and 7Ah.
Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Input Voltage Supply | 9V-36V |
|---|---|
| Mounting Type | Single-in-Line (SIL) Through-Hole |
You may be interested in
Related products
- Solar panel or fixed DC source charge controller for Lithium-ion battery packs
- Maximum Power Point Tracking (MPPT)
- JEITA compliant Lithium-ion battery charger
- Wide input supply range 11V - 36V
- Adjustable charge voltage and current
- Designed for use with Solar Panels
- Max Power Point Tracking (MPPT)
- Maximises Battery Life
- Wide input supply range 9V - 36V
- Selectable Charge Profiles for 1.2Ah to 12Ah
