Ag5300 Series
The Ag5300 series are low cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300) or 24V DC output (Ag5324) are available. The module signature complies with both the IEEE802.3af and IEEE802.3at specifications and they are designed to meet the safety isolation requirements of IEEE802.3at. The exceptionally small footprint and package size make them ideal for space restricted applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5300 and Ag5324 modules are also well suited to applications in sectors such as IoT, Building Automation and Industrial Control requiring 12V or 24V with the ability to operate over the industrial temperature range from -40 to +85C.
Share:
Description
The Ag5300 series are low cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300) or 24V DC output (Ag5324) are available. The module signature complies with both the IEEE802.3af and IEEE802.3at specifications and they are designed to meet the safety isolation requirements of IEEE802.3at. The exceptionally small footprint and package size make them ideal for space restricted applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5300 and Ag5324 modules are also well suited to applications in sectors such as IoT, Building Automation and Industrial Control requiring 12V or 24V with the ability to operate over the industrial temperature range from -40 to +85C.
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag5300 | 12V | 30 Watts |    |
| Ag5324 | 24V | 30 Watts | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

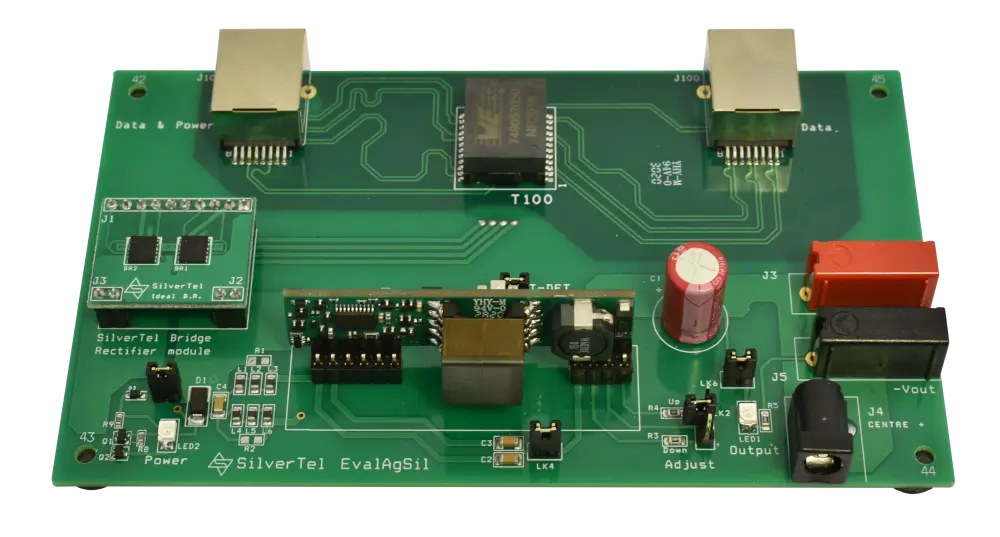

EvalAgSIL – Ag5300 Evaluation Board
EvalAgSIL is designed for testing and evaluation of the Ag5300 range of PoE PD modules. It provides a regulated DC output with voltage dependent on which version of Ag5300 is fitted. The evaluation board will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. it can also be used in conjunction with Ag6130 or Ag6810 as compatible PSEs. Please use the links provided to order boards or download the user manual.
NOTE : when ordering this evaluation board online from the links bellow the module is not included please ensure a separate module is also ordered. From Silvertel and over distribution partners evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Mounting Type | Single-in-Line (SIL) Through-Hole |
|---|---|
| Output Voltage Supply | 12V | 24V |
| Output Power | 30 Watts |
