Ag1171 is a low cost single channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).
Buy Samples
Share:
Description

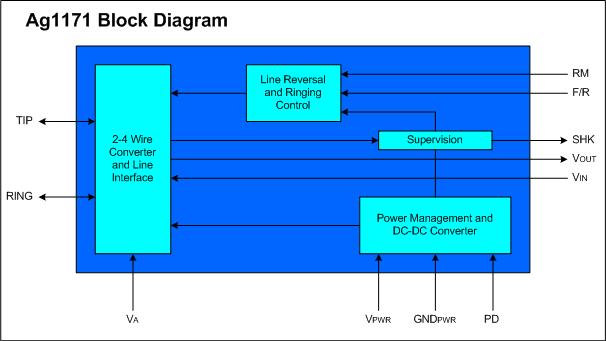

Ag1171 is a low cost single channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).
Ag1171
| Part Number | Description | Input Voltage Supply | Mounting Type | Buy Samples |
|---|---|---|---|---|
| Ag1171 | Single channel ringing SLIC, +3.3V to +5V supply | 3.3V-5V | Single-in-Line (SIL) Through-Hole | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

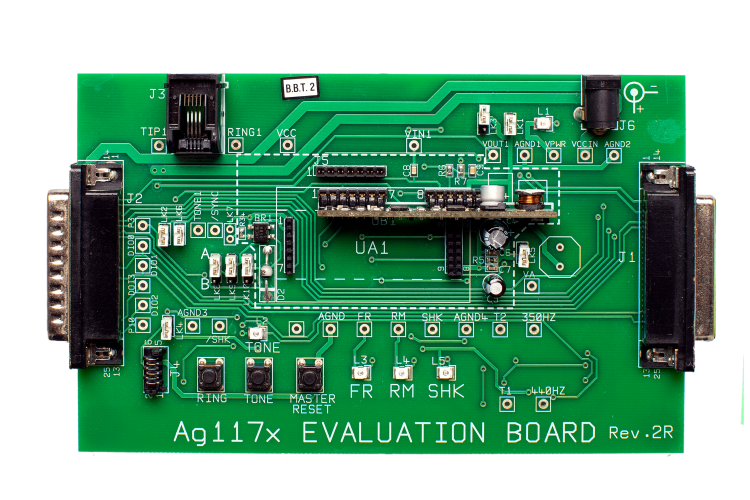

Ag1171 Evaluation Board
EvalAg117x is designed for use and testing of all variants of the Ag1170 and Ag1171 Telecoms modules. It can be used on its own or it can be connected to another EvalAg117x evaluation board or to an EvalAg2120 evaluation board.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Description | Single channel ringing SLIC, +3.3V to +5V supply |
|---|---|
| Input Voltage Supply | 3.3V-5V |
| Mounting Type | Single-in-Line (SIL) Through-Hole |
