The Ag7010 is a low noise DC/DC buck converter featuring integrated PMBus commands through I2C for use in a wide variety of point of load (PoL) and DC/DC converter applications including USB Powered Device (PD), Apple Lightning and Intel Thunderbolt.
The high efficiency DC/DC converter can achieve greater than 97% efficiency and operates over a wide input voltage range with low noise performance and low output ripple. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection.
Buy Samples
Share:
Description
The Ag7010 is a low noise DC/DC buck converter featuring integrated PMBus commands through I2C for use in a wide variety of point of load (PoL) and DC/DC converter applications including USB Powered Device (PD), Apple Lightning and Intel Thunderbolt.
The high efficiency DC/DC converter can achieve greater than 97% efficiency and operates over a wide input voltage range with low noise performance and low output ripple. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection.
Ag7010
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag7010 | 3 -12V | 10A / 120W Max | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

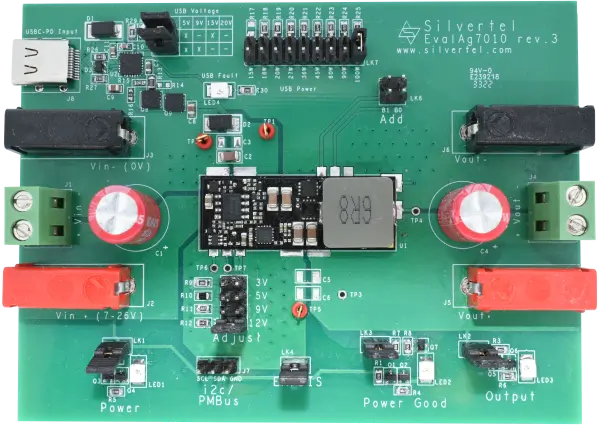

Ag7010 Evaluation Board
EvalAg7010 is designed to allow simple testing and evaluation of Silvertel’s Ag7010 DC/DC buck converter, using either DC input or power provided via a USB-C port.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module.
Additional information
| Output Voltage Supply | 3 -12V |
|---|---|
| Output Power | 10A / 120W Max |
