Ag59800-LPB Series
Ag59800-LPB series Power-over-Ethernet (PoE++) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.
The Ag59800-LPB is pre-configured as a Type 4 Class 8 device, requesting a minimum of 90W of power from the PSE, with nominal output voltages of 12V or 24V.
The high efficiency DC/DC converter can achieve up to 95% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier, as required by the IEEE802.3 specification.
Share:
Description
Ag59800-LPB series Power-over-Ethernet (PoE++) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.
The Ag59800-LPB is pre-configured as a Type 4 Class 8 device, requesting a minimum of 90W of power from the PSE, with nominal output voltages of 12V or 24V.
The high efficiency DC/DC converter can achieve up to 95% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier, as required by the IEEE802.3 specification.
| Part Number | Output Voltage Supply | Buy Samples |
|---|---|---|
| Ag59812-LPB | 12V |   |
| Ag59824-LPB | 24V | |
Ag59800-LPB Evaluation Board

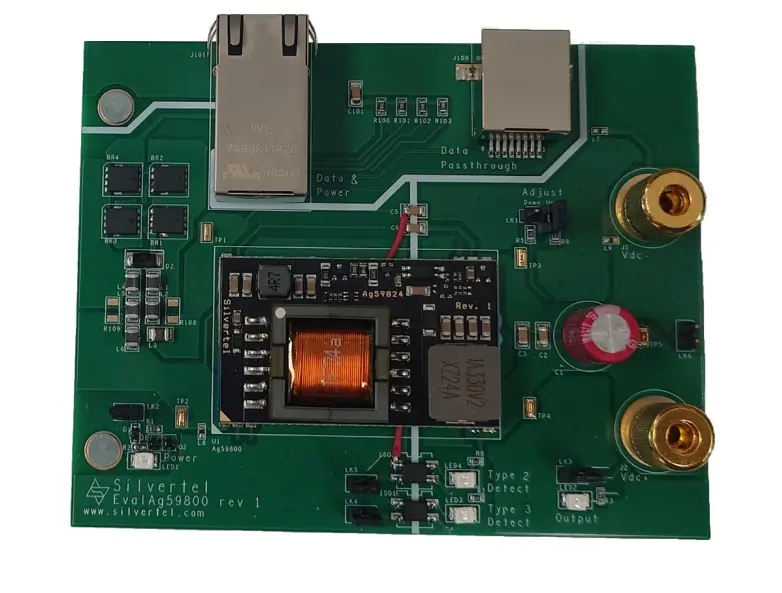

EvalAg59800-LPB are intended for testing and evaluation of the Ag59812-LPB and Ag59824-LPB SMT POE++ PD modules. Ag59812-LPB provides a regulated 12V DC output and the Ag59824-LPB provides a 24V DC output. The evaluation boards will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. They can also be used in conjunction with Ag6800 or Ag6810 as compatible PSEs. Please use the links provided to order boards or download the user manual.
You may be interested in
Related products
- Cost Optimised 97W POE PSE
- IEEE802.3bt compliant module
- Power out on all 4 pairs
- 57V out for maximum efficiency
- Compact DIL package – 51mm(L) x 35mm(W) x 7mm (H)
- Compliant with IEEE802.3af and IEEE802.3at specifications
- Small SIL Footprint-53mm(L)x 7mm(W)x 14mm(H)
- Over Current & Short Circuit Protection
- Signature & Class recognition
- Programmable Output Supply limit up to 75W
- Programmable output power limit up to 75W
- Compliant with IEEE802.3af and IEEE802.3at specifications.
- Single power rail feed
- Small SMT package size - 21mm(L) x 14mm(W) x 5mm(H)- same PCB area as an RJ45 port
- Overload, short-circuit and thermal protection
- SIL - 57mm(L)x18mm(W)x14mm(H)
- 12V & 24V output options
- Adjustable output voltage
- Input voltage range 37V to 57V
- Overload, thermal and short-circuit protection
