The Ag6810 is a Single Channel or Dual Channel Surface-Mount Power Sourcing Equipment (PSE) Module designed for use in Power over Ethernet (PoE) applications with a wide range of power levels from 15.4W (IEEE802.3af), 30W (IEEE802.3at), and up to 95W (IEEE802.3bt).
This tiny compact module is ideal for applications requiring PSE functionality such as IP Cameras, AV distribution, IoT, Home Networking and Industrial Ethernet.

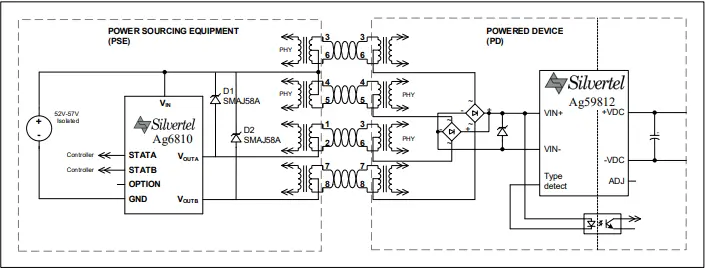

Designed and Manufactured in the UK, and at over 70% smaller than the previous PSE PoE++ solutions, the Ag6810 is a self-contained module, requiring only a single supply voltage and just a few external components to provide a simple and cost-effective Power Sourcing Equipment (PSE) application.
Buy Samples
Share:
Description
The Ag6810 is a Single Channel or Dual Channel Surface-Mount Power Sourcing Equipment (PSE) Module designed for use in Power over Ethernet (PoE) applications with a wide range of power levels from 15.4W (IEEE802.3af), 30W (IEEE802.3at), and up to 95W (IEEE802.3bt).
This tiny compact module is ideal for applications requiring PSE functionality such as IP Cameras, AV distribution, IoT, Home Networking and Industrial Ethernet.
Designed and Manufactured in the UK, and at over 70% smaller than the previous PSE PoE++ solutions, the Ag6810 is a self-contained module, requiring only a single supply voltage and just a few external components to provide a simple and cost-effective Power Sourcing Equipment (PSE) application.
Ag6810
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag6810 | 48V or 57V | 15.4 – 95 Watts | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

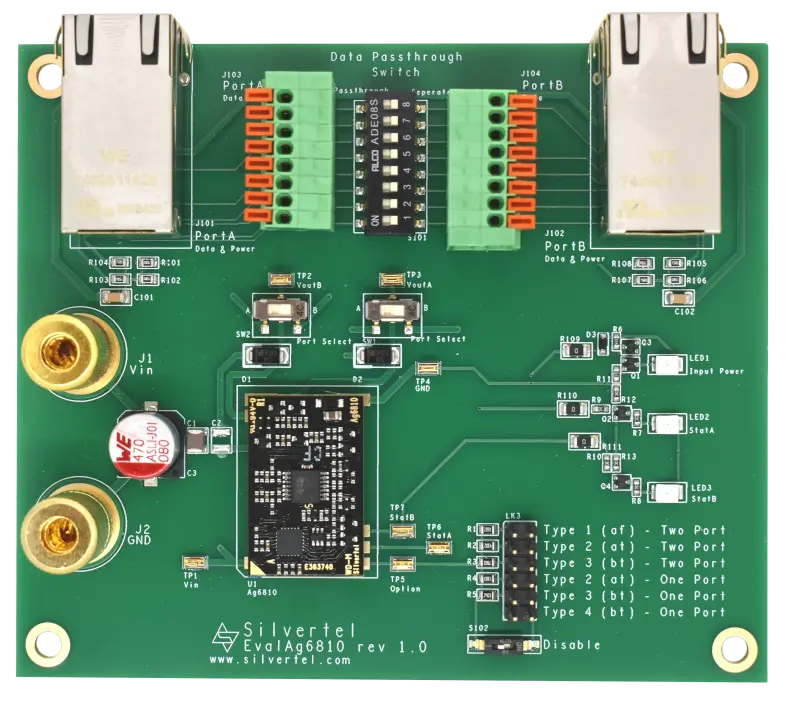

Ag6810 Evaluation Board
EvalAg6810 are intended for testing and evaluation of the Ag6810 PSE modules.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module.
For further information or to purchase an evaluation board for the Ag6810 or any other Silvertel modules please contact Silvertel at sales@silvertel.com, or your local distributor.
Additional information
| Output Voltage Supply | 48V or 57V |
|---|---|
| Output Power | 15.4 – 95 Watts |
