Ag2120 is a highly integrated trunk or PSTN/COIC interface, available in either a Dual-in-Line (DIL) or Single-in-Line (SIL) package. The module boasts many integrated features, including a basic barrier on-chip and programmable DC mask. The Ag2120 can be used in systems without a ground, or in applications where common mode interference is very high. It can also be operated from either a +3.3V or a +5V supply.
Buy Samples
Share:

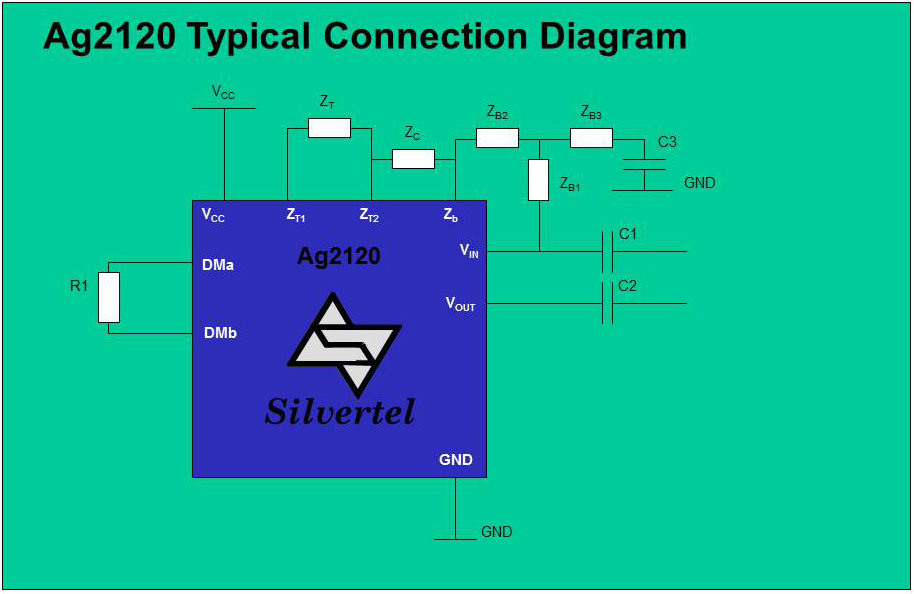

Description
Ag2120 is a highly integrated trunk or PSTN/COIC interface, available in either a Dual-in-Line (DIL) or Single-in-Line (SIL) package. The module boasts many integrated features, including a basic barrier on-chip and programmable DC mask. The Ag2120 can be used in systems without a ground, or in applications where common mode interference is very high. It can also be operated from either a +3.3V or a +5V supply.
| Part Number | Description | Input Voltage Supply | Mounting Type | Buy Samples |
|---|---|---|---|---|
| Ag2120S | Programmable single channel trunk/PSTN interface | 3.3V-5V | Single-in-Line (SIL) Through-Hole | |
| Ag2120D | Programmable single channel trunk/PSTN interface | 3.3V-5V | Dual-in-Line (DIL) Through-Hole | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):
Ag2120 Evaluation Board

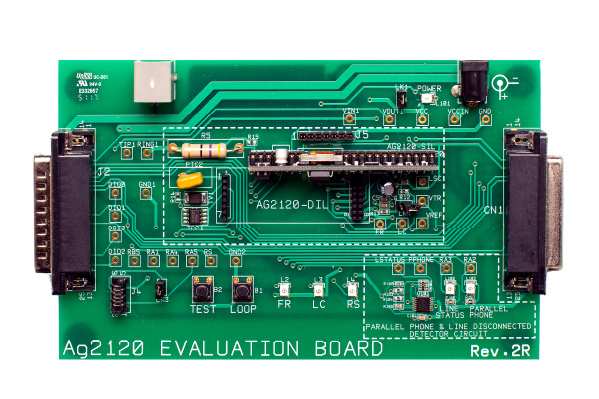

EvalAg2120 is designed and suitable for evaluation and use with all variants of the Ag2120 Telecoms module. It can be used on its own or it can be connected to an EvalAg117x evaluation board.
Additional information
| Description | Programmable single channel trunk/PSTN interface |
|---|---|
| Input Voltage Supply | 3.3V-5V |
| Mounting Type | Single-in-Line (SIL) Through-Hole | Dual-in-Line (DIL) Through-Hole |
You may be interested in
Related products
- Highly featured PSTN interface
- Very small SIL package options
- Includes Transformer isolation
- On board Loop switch and Diode bridge
- Ringing detection
