Ag2130 is a low cost single channel PSTN Interface in a Single-in-Line (SIL) package. The module provides many integrated features, including a basic barrier on-chip. It can be used in systems without a ground, or in applications where common mode interference is very high. Ag2130 can also be operated from either +3.3V or a +5V supply.
Buy Samples
Share:
Description
Ag2130 is a low cost single channel PSTN Interface in a Single-in-Line (SIL) package. The module provides many integrated features, including a basic barrier on-chip. It can be used in systems without a ground, or in applications where common mode interference is very high. Ag2130 can also be operated from either +3.3V or a +5V supply.
| Part Number | Description | Mounting Type | Buy Samples |
|---|---|---|---|
| Ag2130S | Single channel programmable trunk/PSTN interface | Single-in-Line (SIL) Through-Hole | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

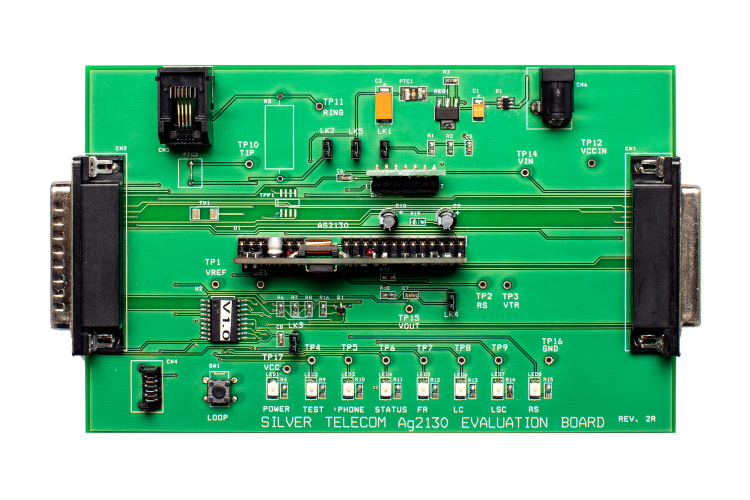

Ag2130 Evaluation Board
EvalAg2130 is designed and is fully compatible for testing and evaluation of the Ag2130 Telecoms module. It can be used on its own or it can be connected to an EvalAg117x evaluation board.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Input Voltage Supply | 3.3V-5V |
|---|---|
| Description | Single channel programmable trunk/PSTN interface |
| Mounting Type | Single-in-Line (SIL) Through-Hole |
