Ag7100 provides a cost and footprint optimised 40W isolated DC-DC converter, to boost 12V/24V up to 48V/57V. It is perfect for PoE, PSE or other applications requiring a convenient solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6100 PSE module.
Buy Samples
Share:

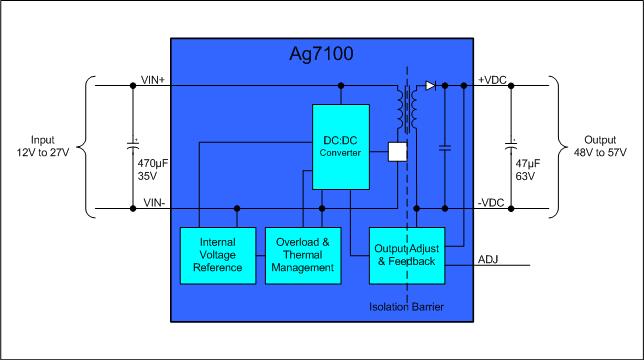

Description
Ag7100 provides a cost and footprint optimised 40W isolated DC-DC converter, to boost 12V/24V up to 48V/57V. It is perfect for PoE, PSE or other applications requiring a convenient solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6100 PSE module.
| Part Number | Input Voltage Supply | Output Voltage Supply | Mounting Type | Buy Samples |
|---|---|---|---|---|
| Ag7100 | 11V-27V | 48V-57V | Dual-in-Line (DIL) Through-Hole | |

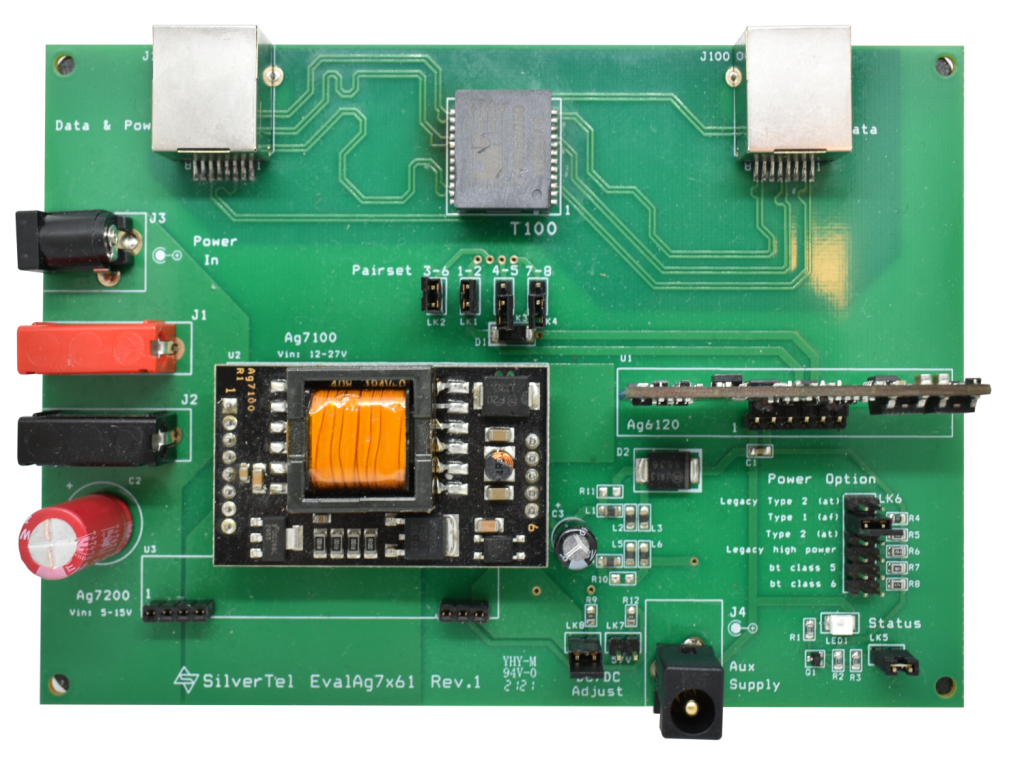

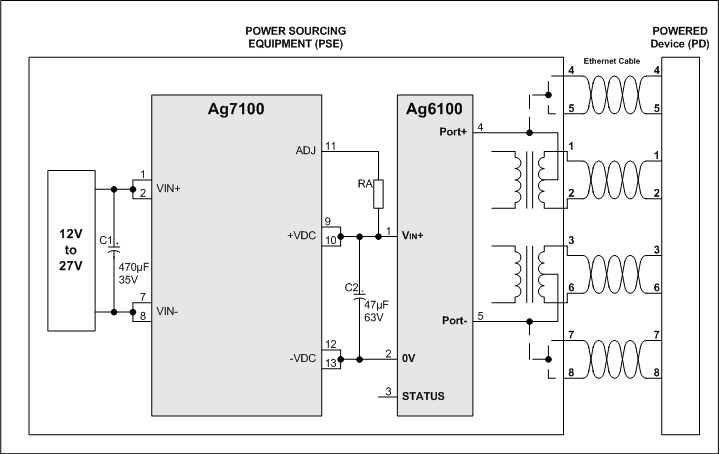

EvalAg7x61
This is Silvertel’s new EVAL board to cover both the Ag7100 DC-DC converter and it’s complementary and frequently associated Ag6100 PSE module.
It is designed to allow simple and combined or separate testing and evaluation of both Silvertel’s Ag6100 POE PSE module as well as the Ag7100 DC-DC Boost converter. With either 12V or 24V nominal DC input, the output of the Ag7100 is linked on the Eval board directly to the input of the Ag6100 as it would be if being used to design a PSE power circuit. It is designed to provide a complete Power Sourcing Equipment (PSE) functional power block, when fitted with both modules, providing up to 40W of PSE output power onto the CAT5/6 cable as an output at either 48V or 57V.
Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Input Voltage Supply | 11V-27V |
|---|---|
| Output Voltage Supply | 48V-57V |
| Mounting Type | Dual-in-Line (DIL) Through-Hole |
