Ag7200 provides a cost and footprint optimised SIL package 20W isolated DC-DC converter, to boost from 5V to 15V up to between 36V and 57V. It is perfect for PoE, PSE or other applications requiring a convenient isolated solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6120 PSE module, optimised for 802.3af (15.4W) power levels and applications.
Buy Samples
Share:
Description
Ag7200 provides a cost and footprint optimised SIL package 20W isolated DC-DC converter, to boost from 5V to 15V up to between 36V and 57V. It is perfect for PoE, PSE or other applications requiring a convenient isolated solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6120 PSE module, optimised for 802.3af (15.4W) power levels and applications.
| Part Number | Buy Samples |
|---|---|
| Ag7200 | |
EvalAg7x61Evaluation Board

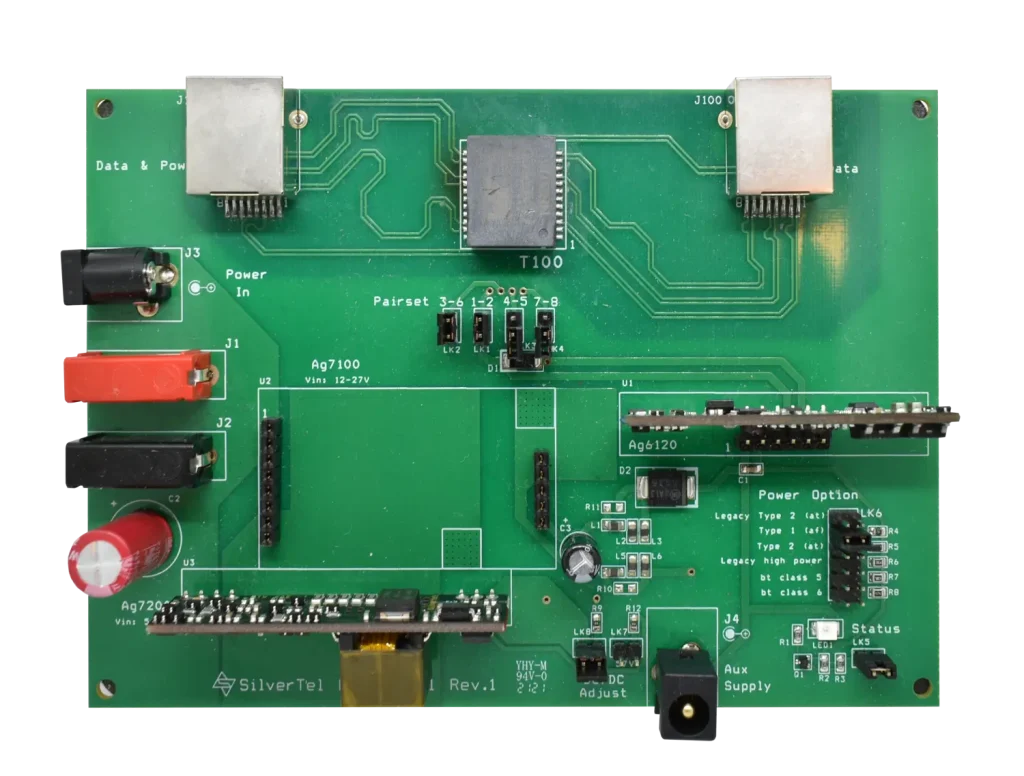

EvalAg7x61 is Silvertel’s evaluation board to cover both the Ag7200 DC-DC converter and it’s complementary and frequently associated Ag6120 PoE PSE module.
It is designed to allow simple and combined or separate testing and evaluation of both Silvertel’s Ag6120 PoE PSE module as well as the Ag7200 DC-DC Boost converter. With either 5V or 12V nominal DC input, the output of the Ag7200 is linked on the Eval board directly to the input of the Ag6120 as it would be if being used to design a PSE power circuit. It is designed to provide a complete Power Sourcing Equipment (PSE) functional power block, when fitted with both modules, providing up to 20W of PSE output power onto the CAT5/6 cable as an output at either 48V or 57V.
