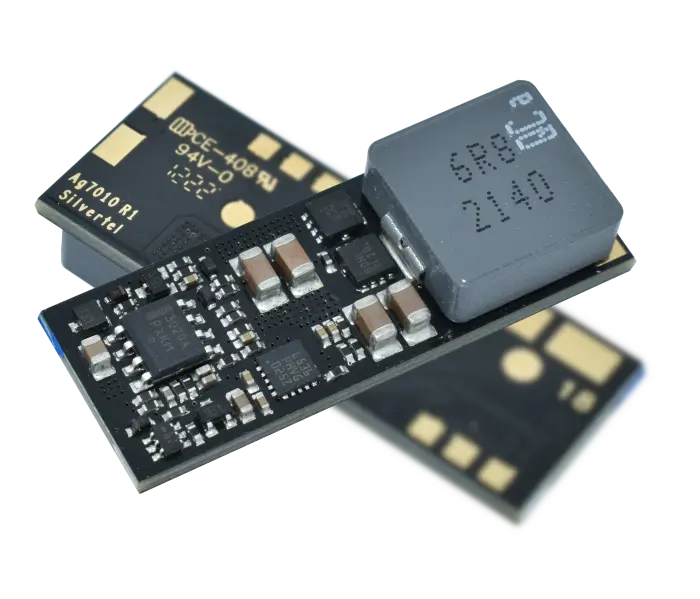

Ag7010
The Ag7010 is a low noise DC/DC buck converter featuring integrated PMBus commands through I2C for use in a wide variety of point of load (PoL) and DC/DC converter applications including USB Powered Device (PD), Apple Lightning and Intel Thunderbolt.
The high efficiency DC/DC converter can achieve greater than 97% efficiency and operates over a wide input voltage range with low noise performance and low output ripple. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection.

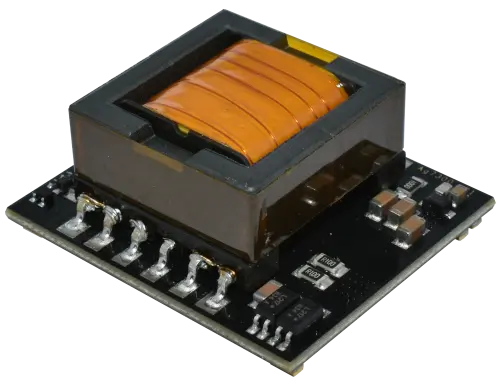

Ag7300
The Ag7300 is a high power DC/DC boost converter, designed to generate the higher voltages whilst providing the isolation required for an IEEE802.3 compliant PSE application. For use in single IEEE802.3bt (PoE++) applications, multiple IEEE802.3af/at (PoE/PoE+) applications or power distribution applications.
The Ag7300 accepts a wide DC voltage input range, from 18V to 36V, and provides a regulated adjustable output of between 48V to 57V, while achieving greater than 91% efficiency. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection.

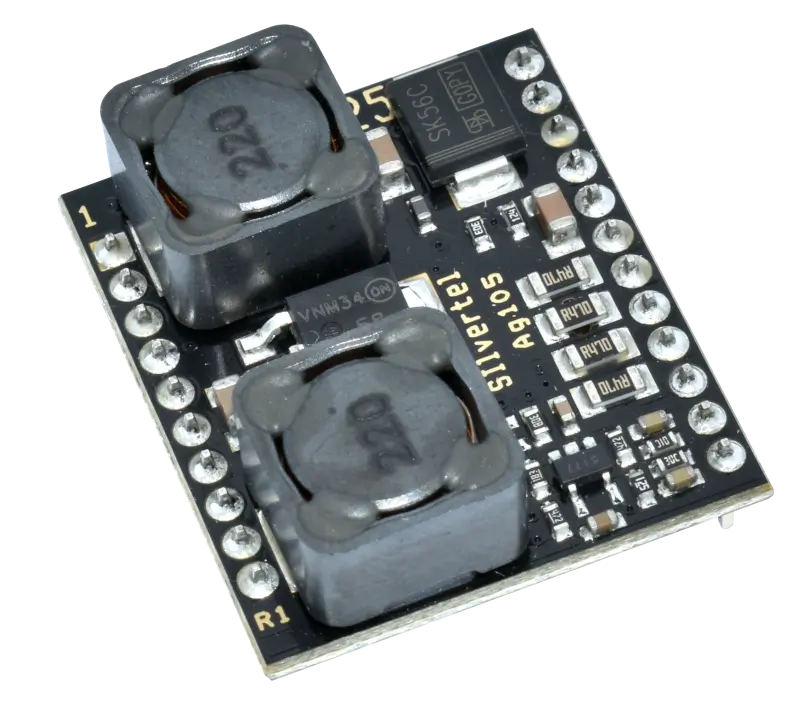

Ag105
The Ag105 is a solar charge controller for protected Lithium-ion (Li-ion) and Lithium Polymer (Li-Po) batteries that can also be used with a fixed DC supply in standalone applications. The module requires very few supporting components to configure the charge controller to any application.
With a wide operating input range of 11VDC to 36VDC and using intelligent charging techniques, such as Maximum Power Point Tracking (MPPT), the Ag105 will adjust the charge rate to optimise the power produced by a solar panel.
The Ag105 can be configured for 1, 2 or 3 series cell Li-ion batteries, with 4 voltage per-cell options to balance serviceable battery lifetime and usable capacity.

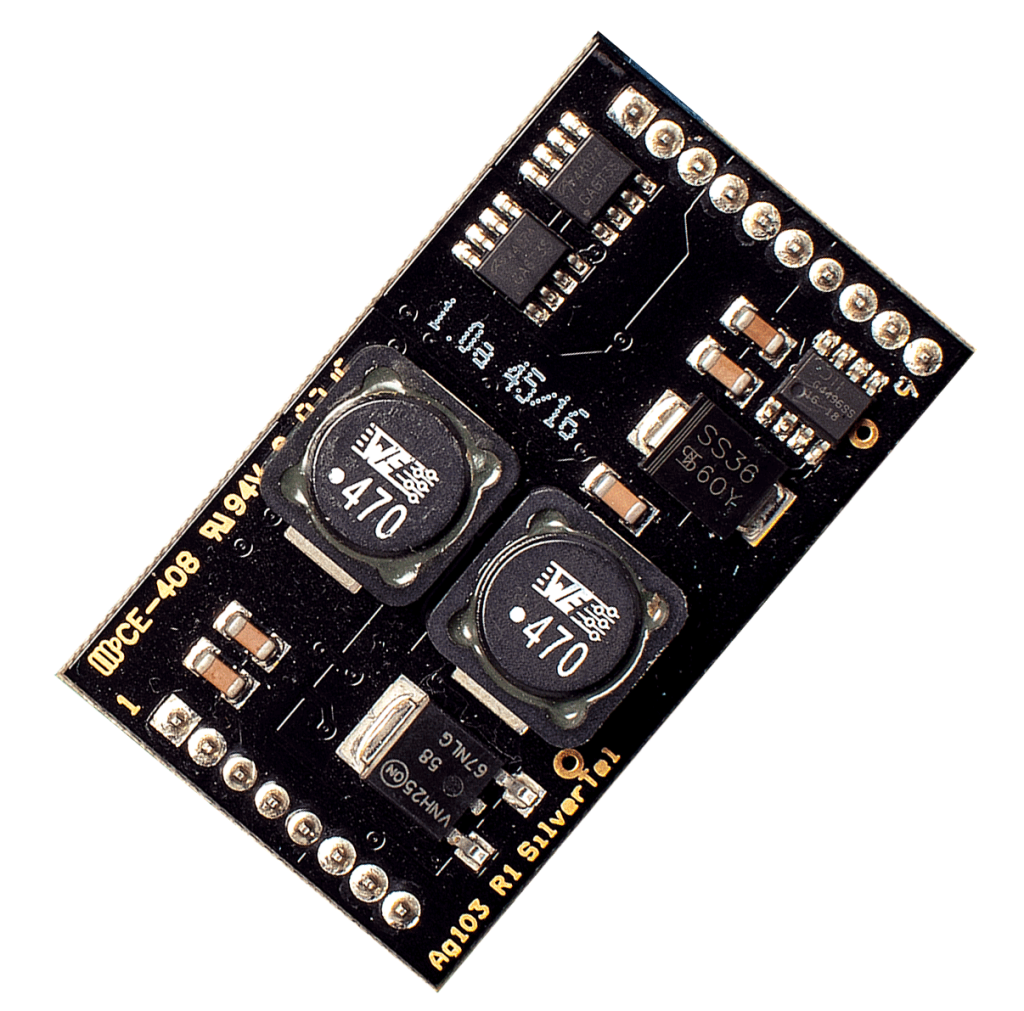

Ag103
Ag103 is a charge control module, designed to maximise battery life and reduce life cycle maintenance and call out costs. Ag103 uses Maximum Power Point Tracking (MPPT) techniques with intelligent charging profiles and a high efficiency DC-DC converter to optimise the available solar power for charging. This module has been specifically designed for for use with Solar Panels as the power source and for charging 12V Solar Batteries. These solar batteries are designed for maximum lifetime with a very high number of deep discharge cycles.

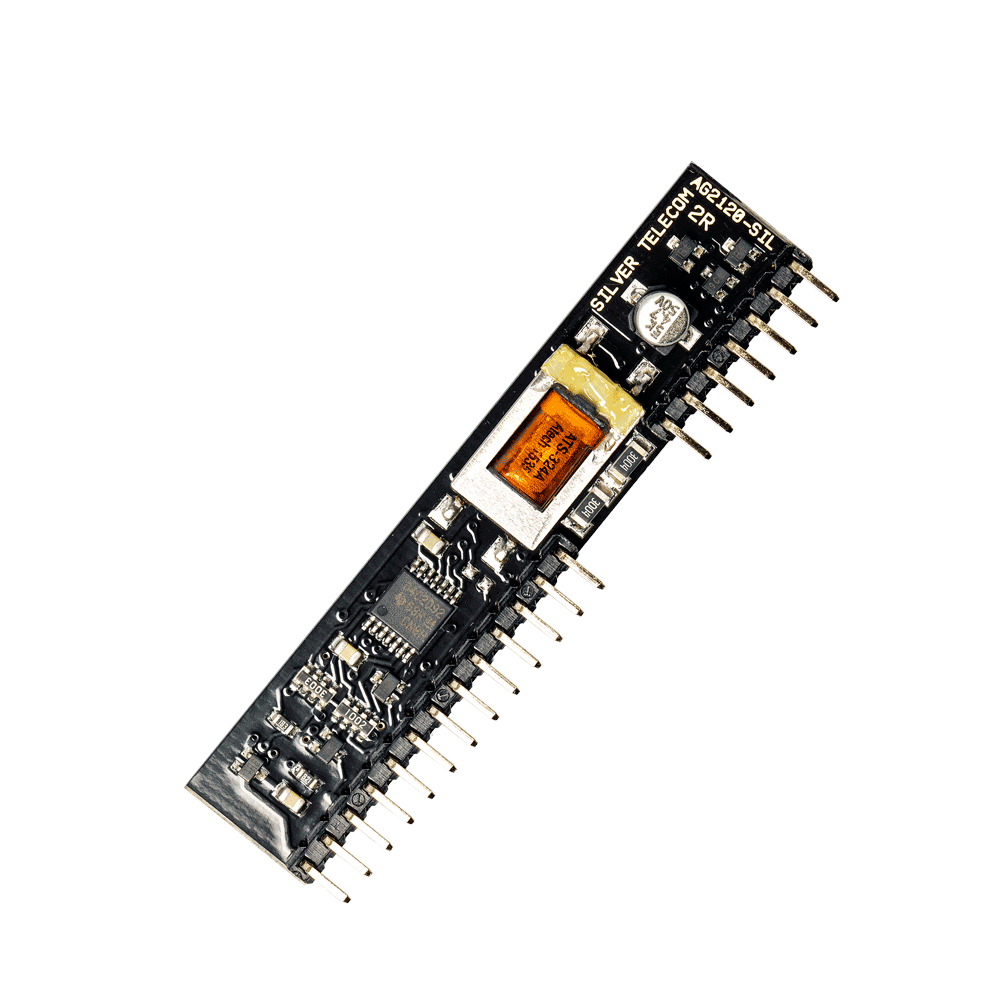

Ag2120
Ag2120 is a highly integrated trunk or PSTN/COIC interface, available in either a Dual-in-Line (DIL) or Single-in-Line (SIL) package. The module boasts many integrated features, including a basic barrier on-chip and programmable DC mask. The Ag2120 can be used in systems without a ground, or in applications where common mode interference is very high. It can also be operated from either a +3.3V or a +5V supply.

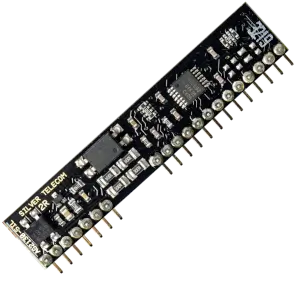

Ag2130
Ag2130 is a low cost single channel PSTN Interface in a Single-in-Line (SIL) package. The module provides many integrated features, including a basic barrier on-chip. It can be used in systems without a ground, or in applications where common mode interference is very high. Ag2130 can also be operated from either +3.3V or a +5V supply.
