The Ag6120 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6120 PSE Modules are compatible with IEEE802.3af PoE and IEEE802.3at PoE+ applications and PD modules (For Example, Silvertel’s Ag9900, Ag5400 or Ag5700-LPB PoE PD Modules).
Buy Samples
Share:

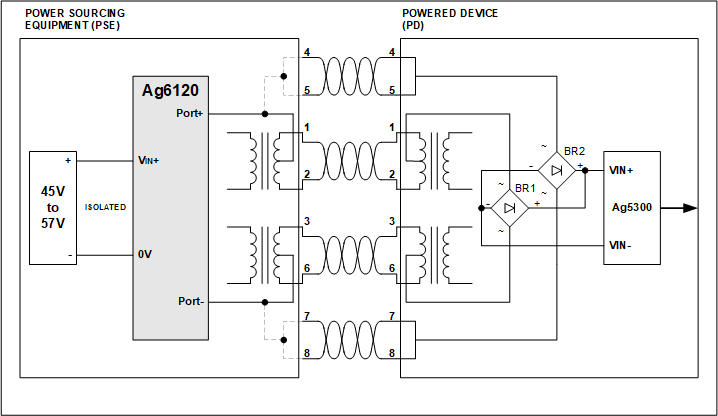

Description
The Ag6120 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6120 PSE Modules are compatible with IEEE802.3af PoE and IEEE802.3at PoE+ applications and PD modules (For Example, Silvertel’s Ag9900, Ag5400 or Ag5700-LPB PoE PD Modules).
Ag6120
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag6120 | 48V or 57V | 20 – 75 Watts | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

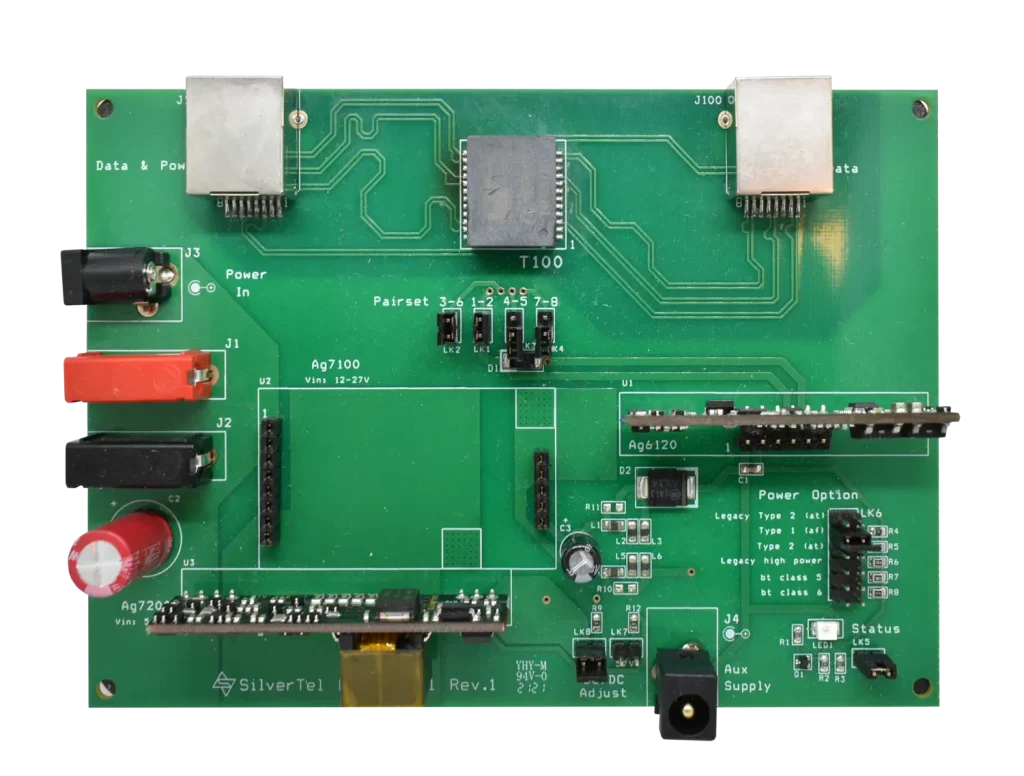

EvalAg7x61 Evaluation Board
EvalAg7x61 is Silvertel’s evaluation board to cover both the Ag7200 DC-DC converter and it’s complementary and frequently associated Ag6120 PSE module.
It is designed to allow simple and combined or separate testing and evaluation of both Silvertel’s Ag6120 POE PSE module as well as the Ag7200 DC-DC Boost converter. With either 5V or 12V nominal DC input, the output of the Ag7200 is linked on the Eval board directly to the input of the Ag6120 as it would be if being used to design a PSE power circuit. It is designed to provide a complete Power Sourcing Equipment (PSE) functional power block, when fitted with both modules, providing up to 20W of PSE output power onto the CAT5/6 cable as an output at either 48V or 57V.

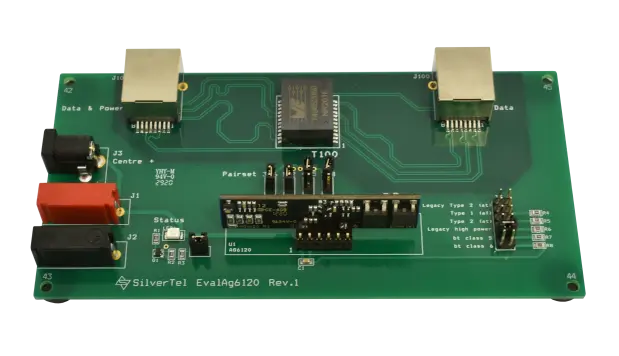

Ag6120 Evaluation Board
EvalAg6120 is Silvertels standard evaluation board for testing and evaluation of Silvertel Ag6120 Single Channel PSE module and is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates. It is designed to work with Powered Devices (PDs) (e.g. Ag97000-FL or Ag53000) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Output Voltage Supply | 48V or 57V |
|---|---|
| Output Power | 20 – 75 Watts |
