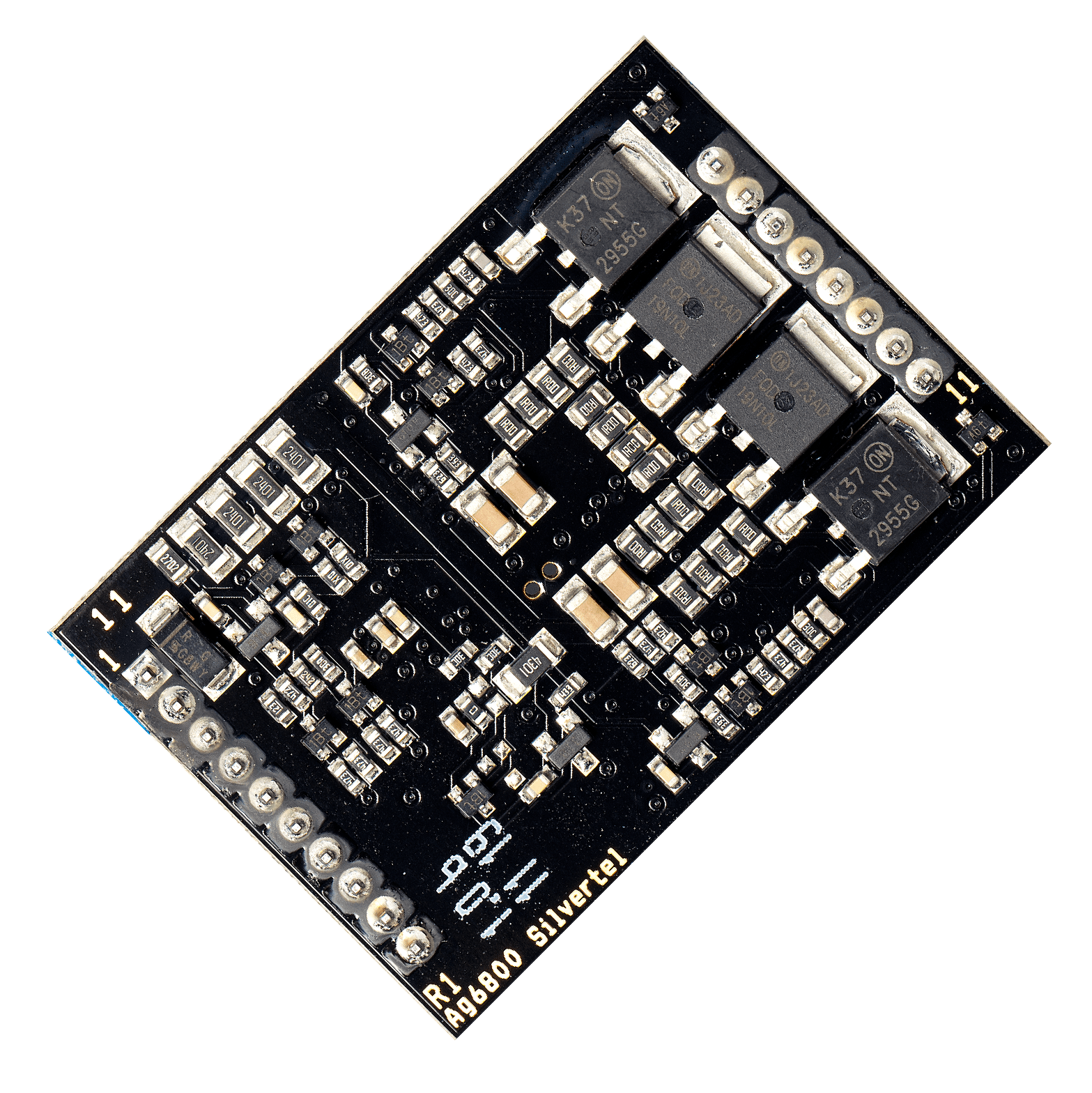

The Ag6800 is a single channel high power PSE module designed to be compliant with IEEE802.3bt Power over Ethernet (PoE) applications. It is capable of delivering up to 97W and is aimed at higher power applications. It is complemented by Silvertel’s Ag5800 PD module for POE and and PoH applications.
Buy Samples
Share:
Description
The Ag6800 is a single channel high power PSE module designed to be compliant with IEEE802.3bt Power over Ethernet (PoE) applications. It is capable of delivering up to 97W and is aimed at higher power applications. It is complemented by Silvertel’s Ag5800 PD module for POE and and PoH applications.
Ag6800
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag6800 | 56V | 97 Watts | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

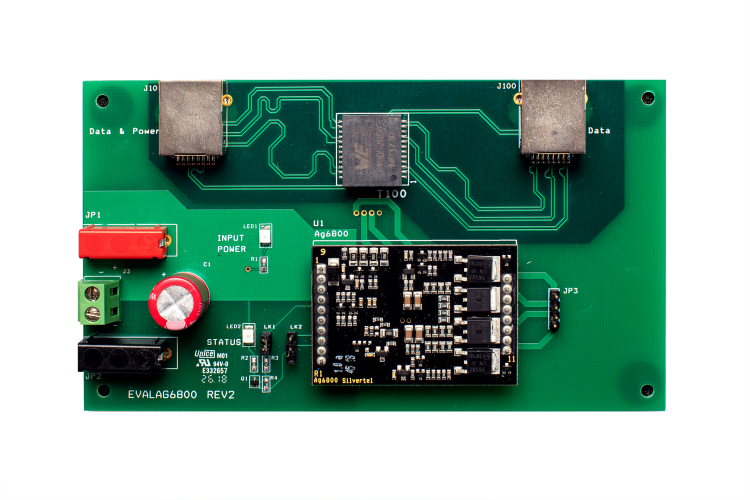

Ag6800 Evaluation Board
EvalAg6800 is intended for testing and evaluation of the performance of the Ag6800 IEEE802.3bt 4-Pair high power POE PSE module. This evaluation board will work with suitable 99W PoE / PoH Powered Devices (PD) that are capable of extracting power over the spare pair and the data pair, such as the Ag59800-LPB or Ag5800 high power PoE++ PD modules. Please use the links provided to buy boards or download the user manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Additional information
| Output Voltage Supply | 56V |
|---|---|
| Output Power | 97 Watts |
