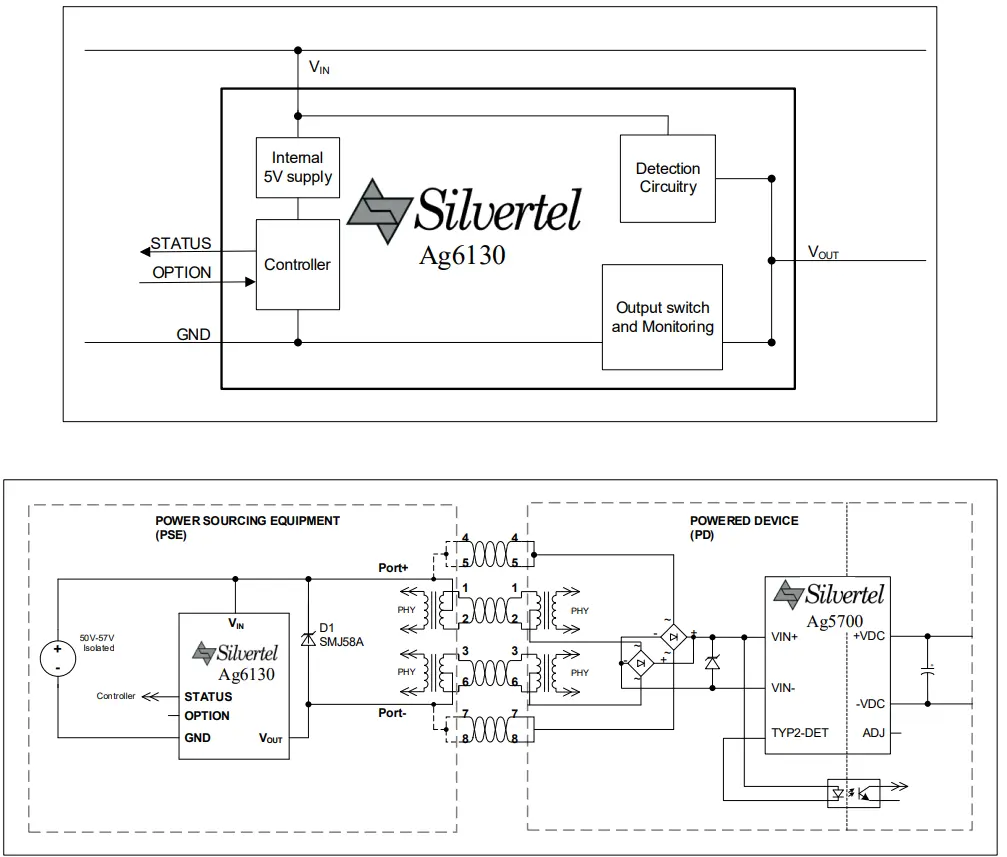

The Ag6130 is a single channel Power Sourcing Equipment (PSE) module designed for use in Power over Ethernet (PoE) applications with a wide range of power levels from 15.4W (IEEE802.3af), 25.5W (IEEE802.3at) up to 75W proprietary power levels.
The Ag6130 is aimed at a wide range of applications requiring PSE functionality such as CCTV DVR, Home Networking and Industrial Ethernet.
Ag6130 is a self-contained module, requiring only a single supply voltage and just a few external components to provide a simple and cost-effective Power Sourcing Equipment (PSE) application.
Buy Samples
Share:
Description
The Ag6130 is a single channel Power Sourcing Equipment (PSE) module designed for use in Power over Ethernet (PoE) applications with a wide range of power levels from 15.4W (IEEE802.3af), 25.5W (IEEE802.3at) up to 75W proprietary power levels.
The Ag6130 is aimed at a wide range of applications requiring PSE functionality such as CCTV DVR, Home Networking and Industrial Ethernet.
Ag6130 is a self-contained module, requiring only a single supply voltage and just a few external components to provide a simple and cost-effective Power Sourcing Equipment (PSE) application.
Ag6130
| Part Number | Output Voltage Supply | Output Power | Buy Samples |
|---|---|---|---|
| Ag6130 | 48V or 57V | 20 – 75 Watts | |
For volume quotes for any of these models, contact your local distributor, details can be found here (below):

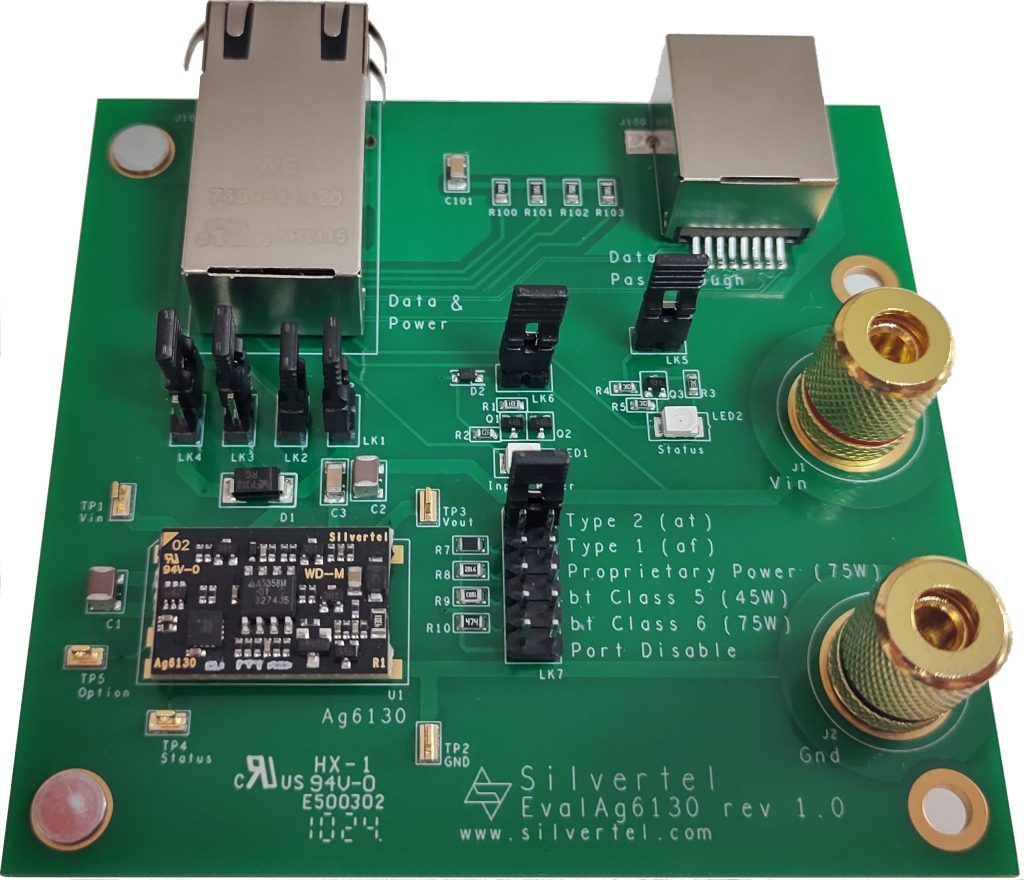

Ag6130 Evaluation Board
EvalAg6130 are intended for testing and evaluation of the Ag6130 PSE modules.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module.
Additional information
| Output Voltage Supply | 48V or 57V |
|---|---|
| Output Power | 20 – 75 Watts |
